Vertical & Offset Rotary Ditchers
From coupler to cutter head, AMCO makes a better drainage ditcher. Clean roadside ditches or direct water away from crops with the AMCO Rotary Ditcher, an industry best-seller. We offer both offset and vertical models, including the Dominator™ Vertical Rotary Ditcher for tractors with higher horsepower. Ditcher options are available for tractors with PTO ratings of 540 and 1,000.

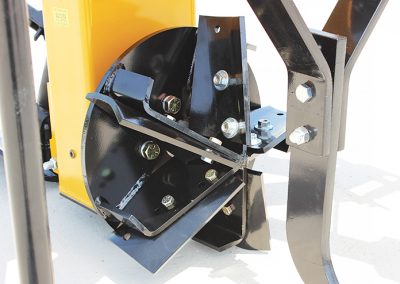

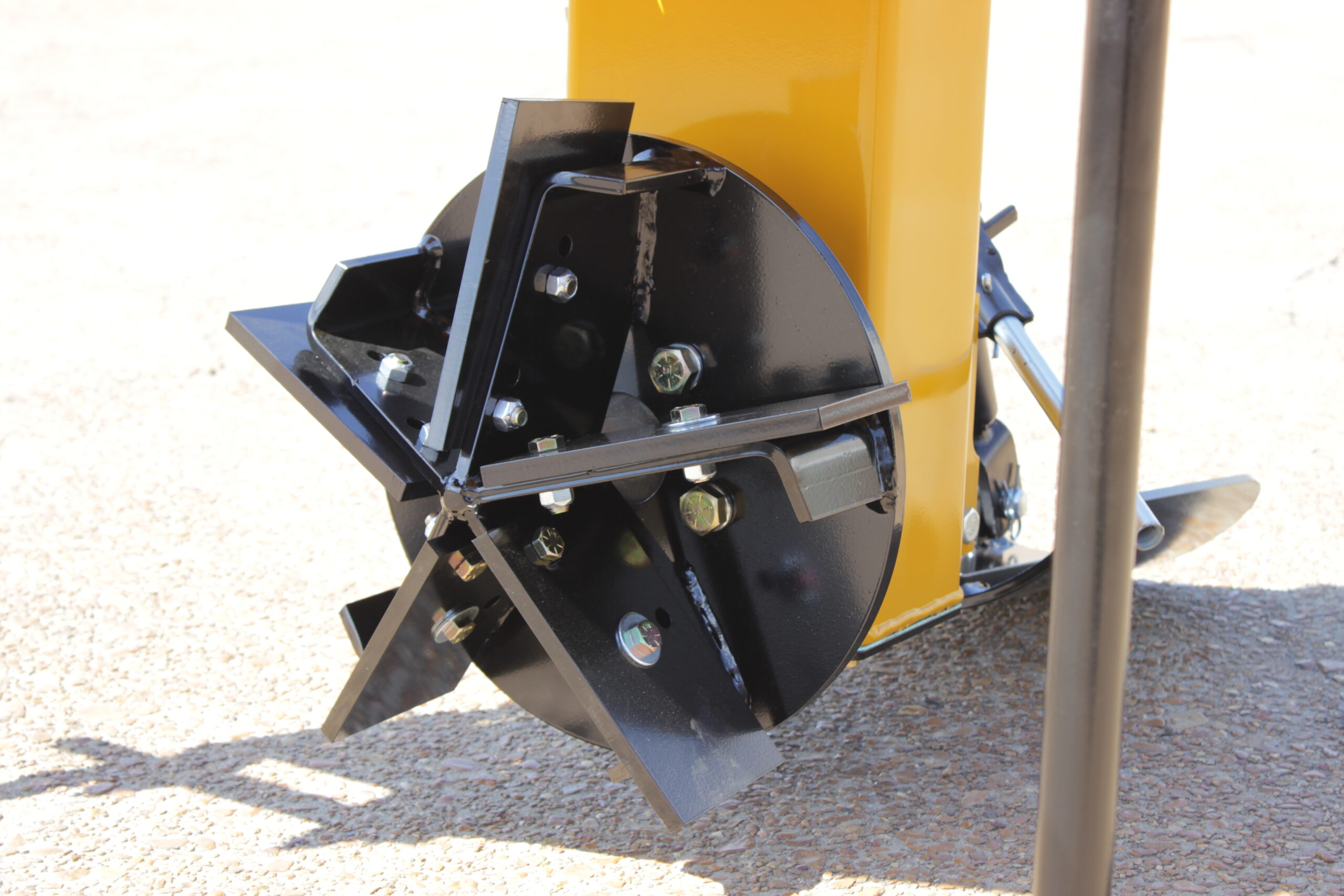

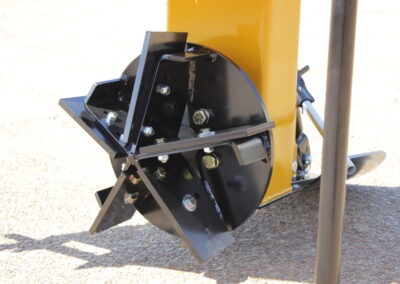

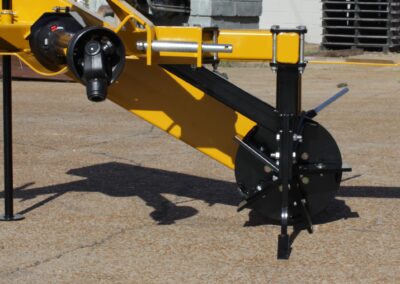

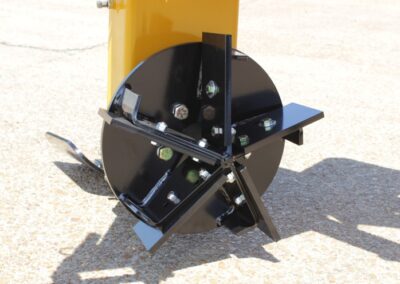

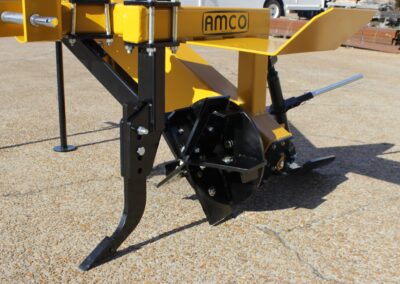

- Our cutter heads feature five heat-treated, replaceable blades. The cutter head width is adjustable from 18″ to 20″ or from 24″ to 26″.
- The original vertical and offset body styles can be ordered with either diameter cutter head. The Dominator can be ordered with a 24″ to 26″ diameter cutter head.

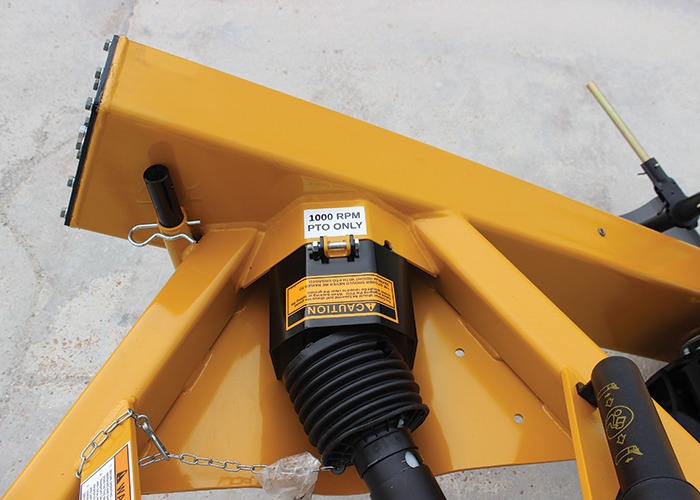

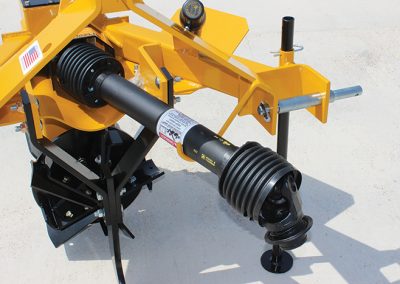

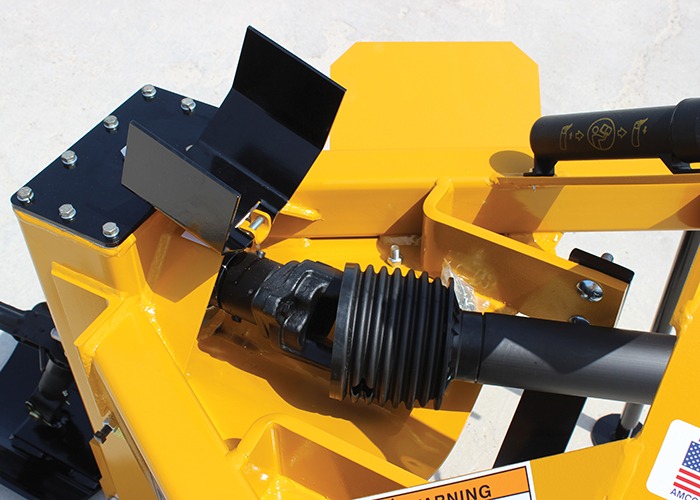

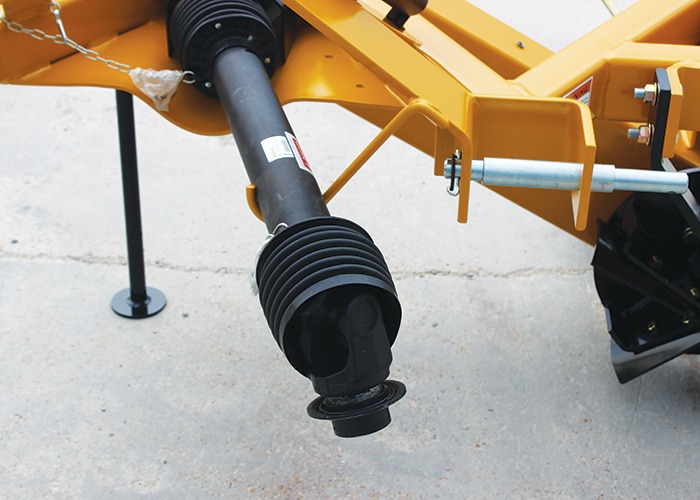

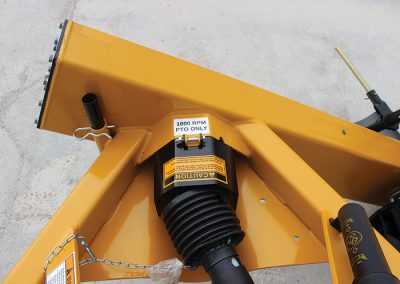

- Securing the PTO drive shaft for storage is easy with a parking hook on the side of the unit. Our ditchers come with Series 55 PTO drivelines with shear bolt protection.

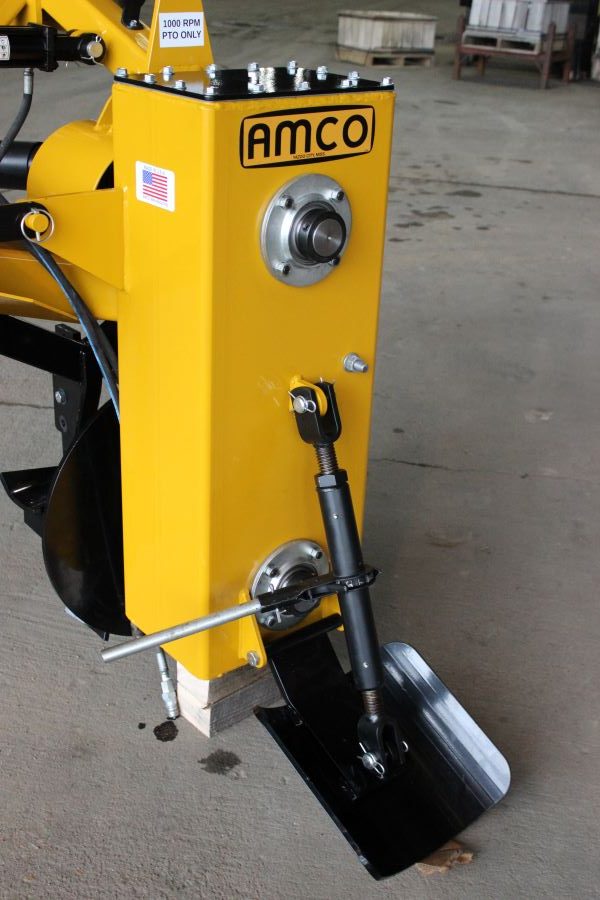

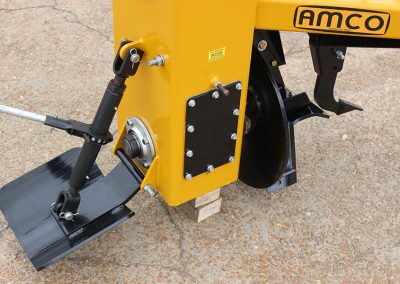

- Standard on all models is a concave skid shoe design with quick-adjust ratchet, which allows the drainage ditcher to track better and form a more uniform ditch. The skid shoe mount is located behind the gear case and helps prevent debris buildup around the cutter head.
- The ripper shank loosens tough soils and prolongs bearing life. The bearings have a two-year warranty.
- AMCO ditchers come with a case-hardened dual #80 heavy-duty chain with 16-tooth and 22-tooth drive sprockets.
- The powder-coated finish is more durable and environmentally friendly.

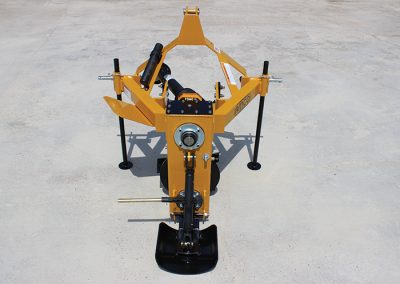

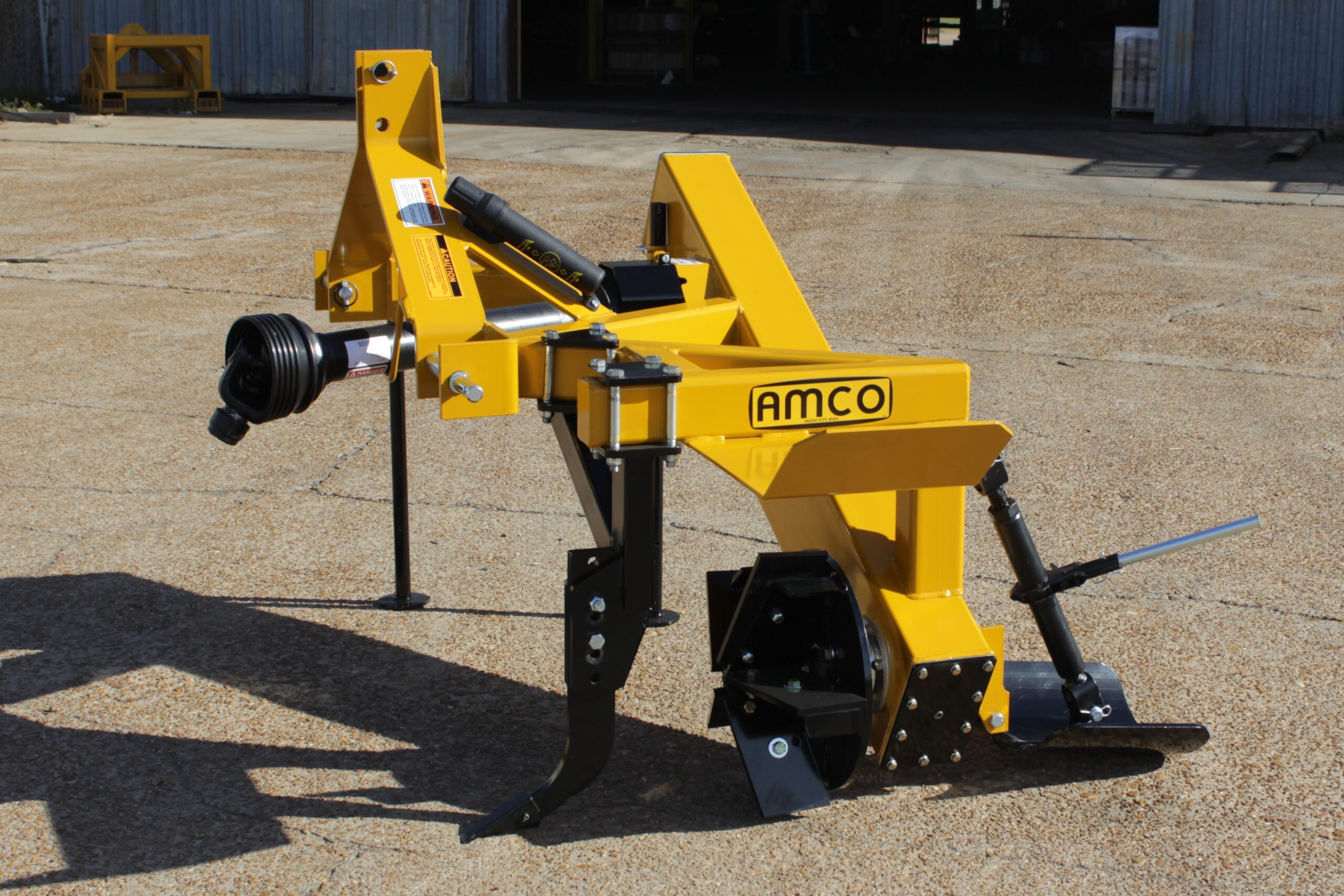

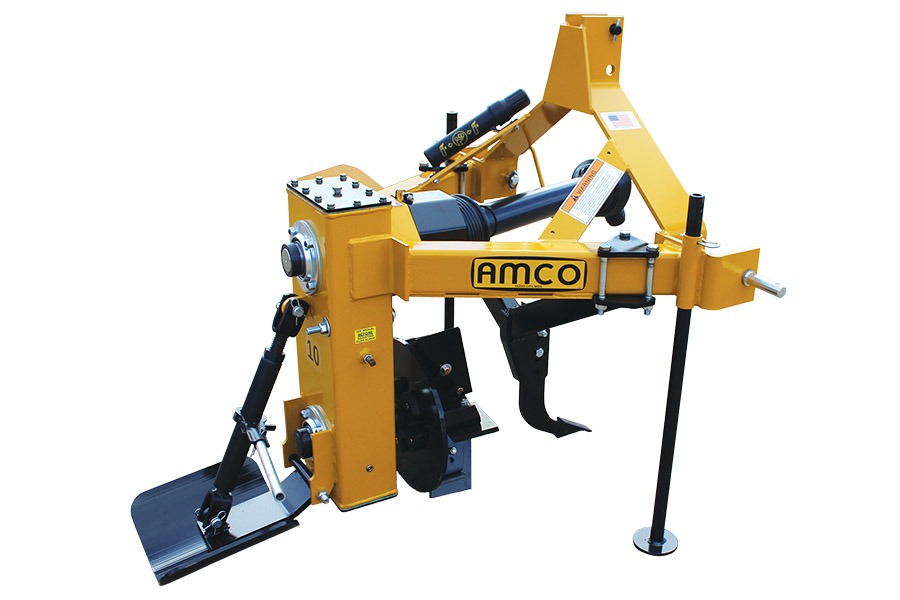

Model shown above: AD-540-V

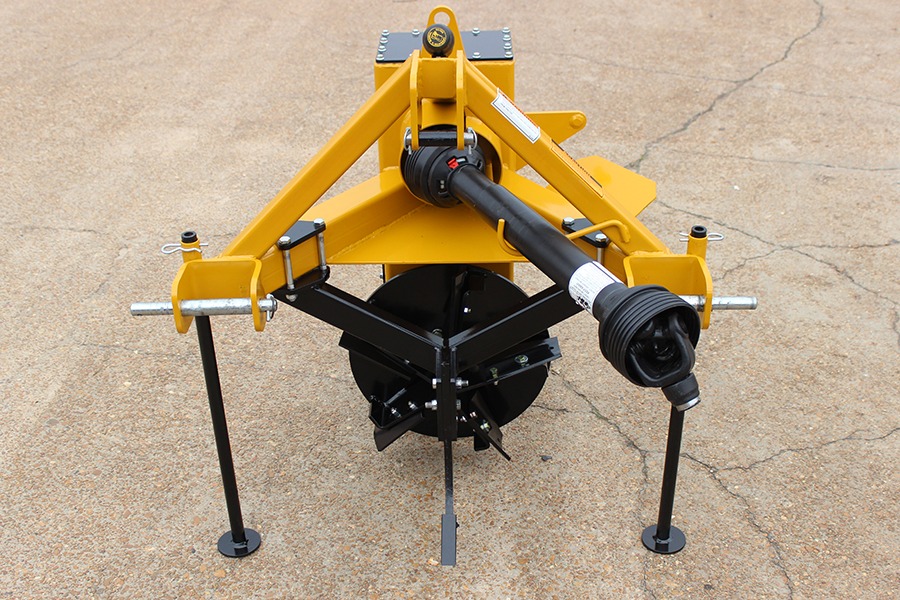

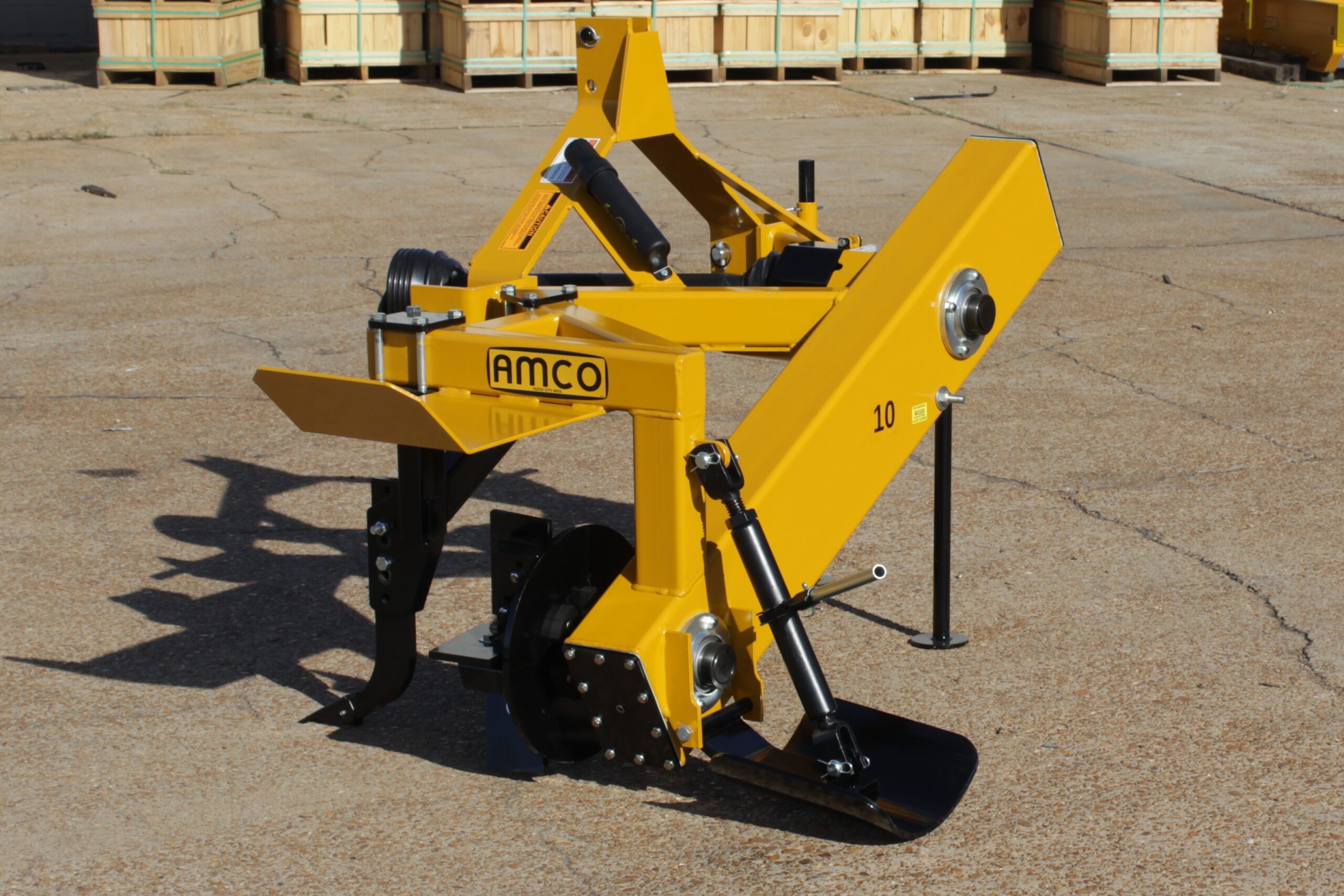

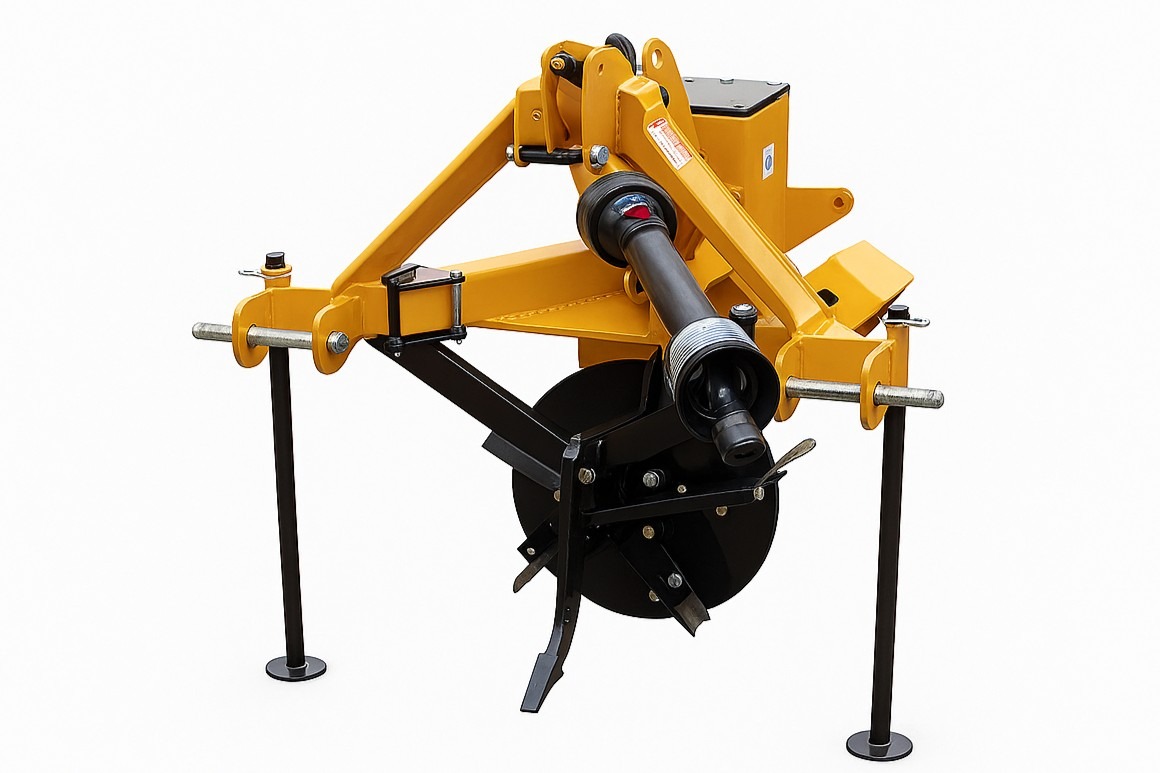

Model shown above: AD-1000-D (Dominator)

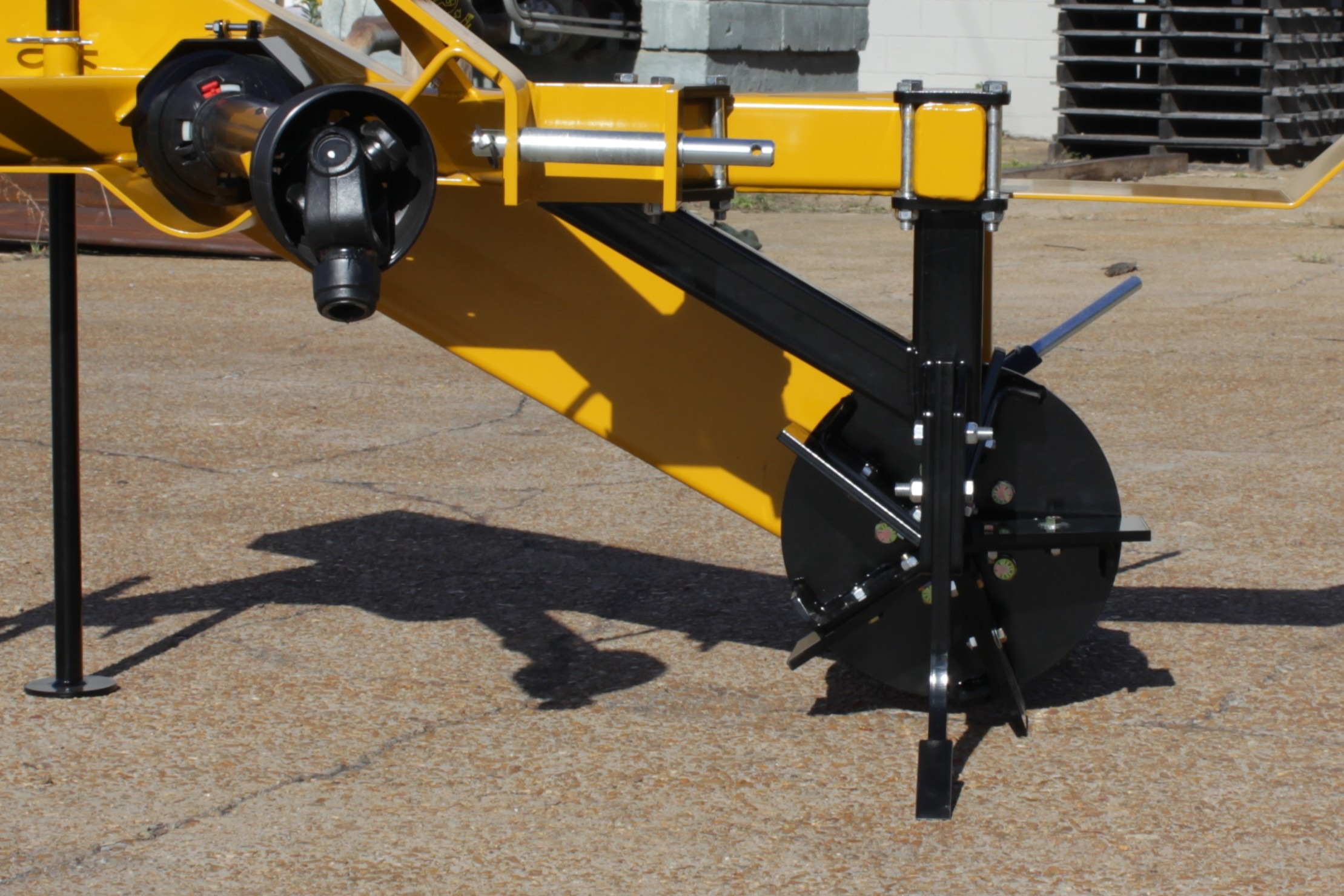

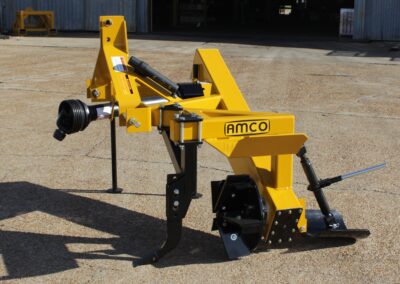

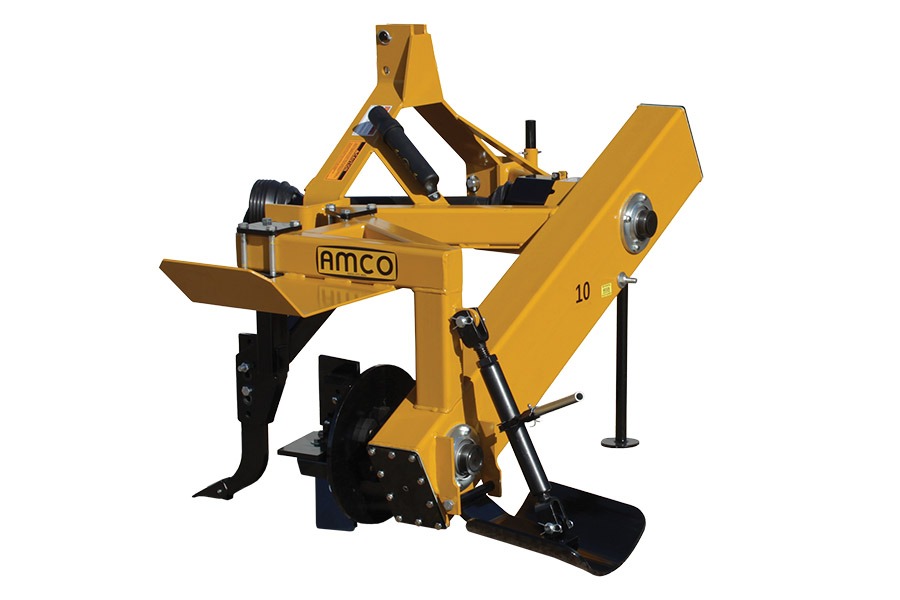

Model shown above: AD-1000-OS

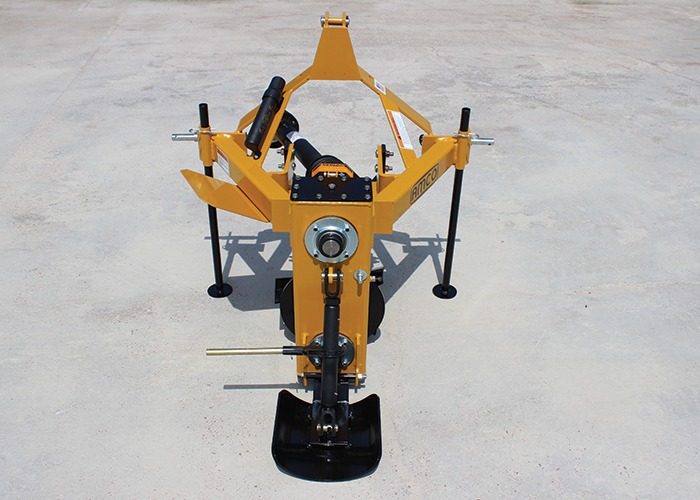

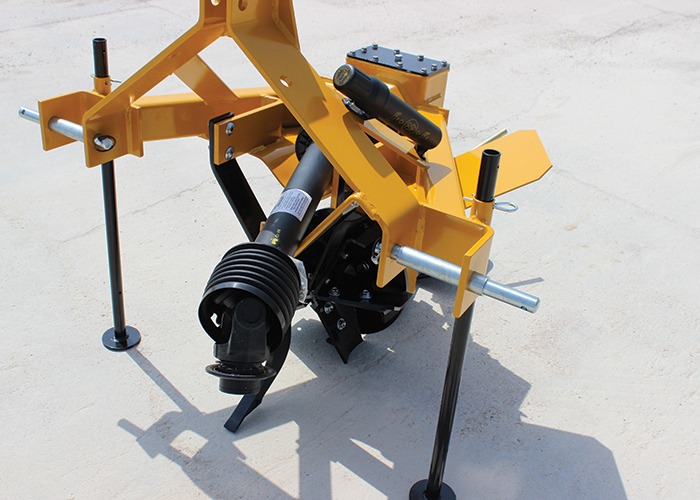

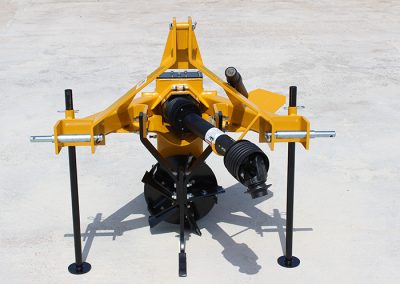

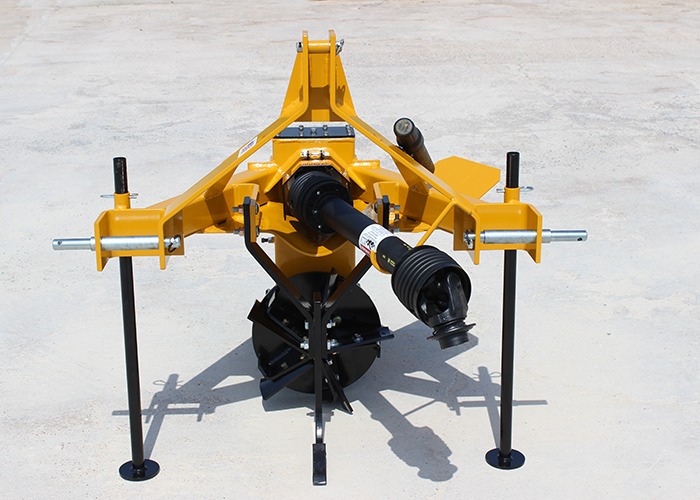

Vertical Rotary Ditcher
Vertical Rotary Ditcher Options
| Model | Description (Body Only) | Approx. Weight lbs. |
|---|---|---|
| AD-540-V | Vertical Rotary Ditcher for 540 PTO | 569 |
| AD-1000-V | Vertical Rotary Ditcher for 1,000 PTO | 569 |
Cutter Head Size
| Model | Blade Diameter | Approx. Weight lbs. |
|---|---|---|
| AD-CHA18 | 18″ to 20″ 5-blade | 72 |
| AD-CHA26 | 24″ to 26″ 5-blade | 109 |
PTO Driveline
| Model | PTO Driveline | Approx. Weight lbs. |
|---|---|---|
| AD-DL6S | 1 3/8″, 6-spline (for 540 PTO) | 56 |
| AD-DL21S | 1 3/8″, 21-spline (for 1,000 PTO) | 56 |
| AD-DL20S | 1 3/4″, 20-spline (for 1,000 PTO) | 58 |
Specifications subject to change without notice.

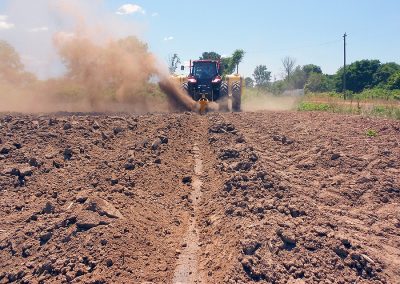

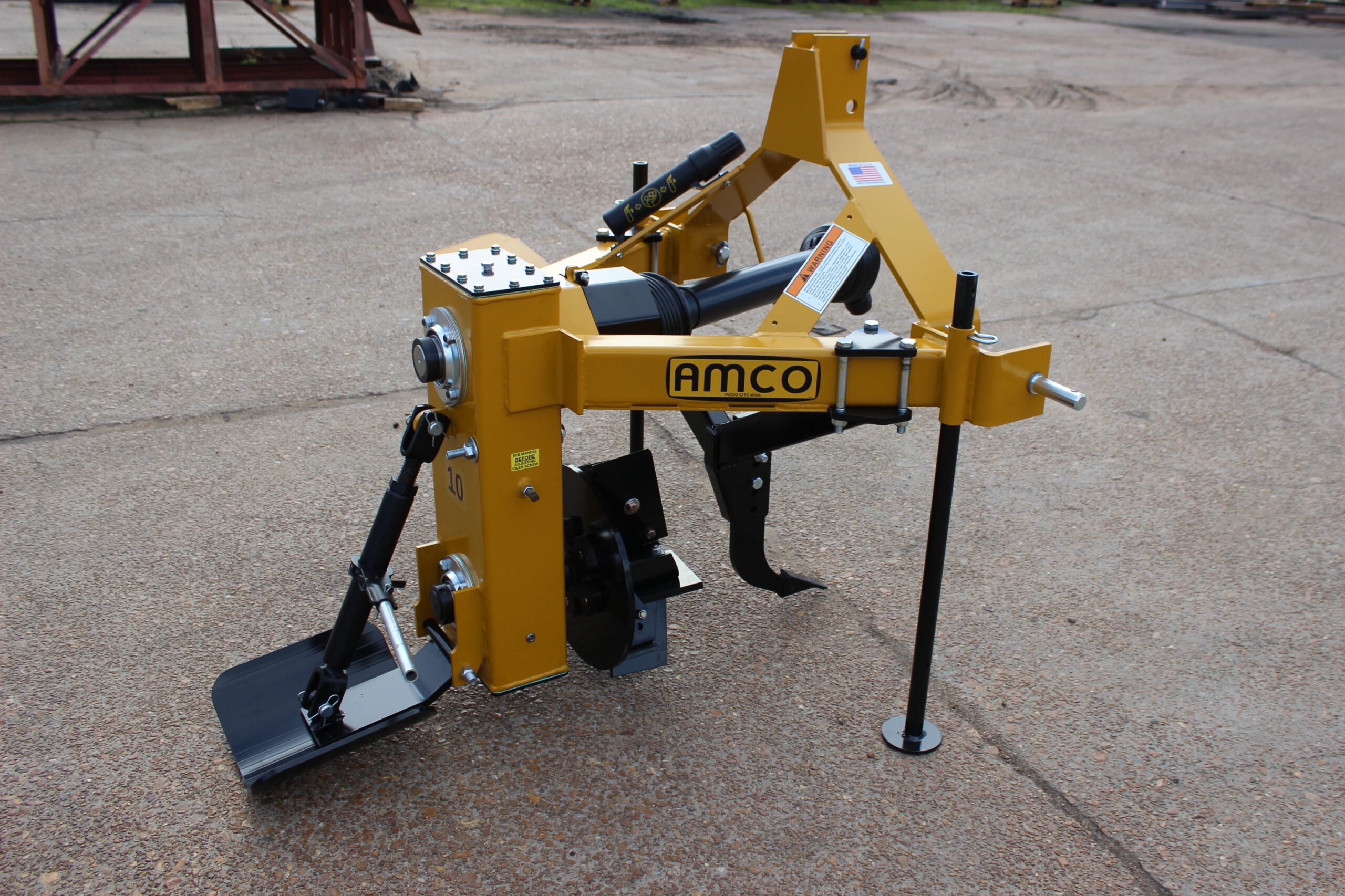

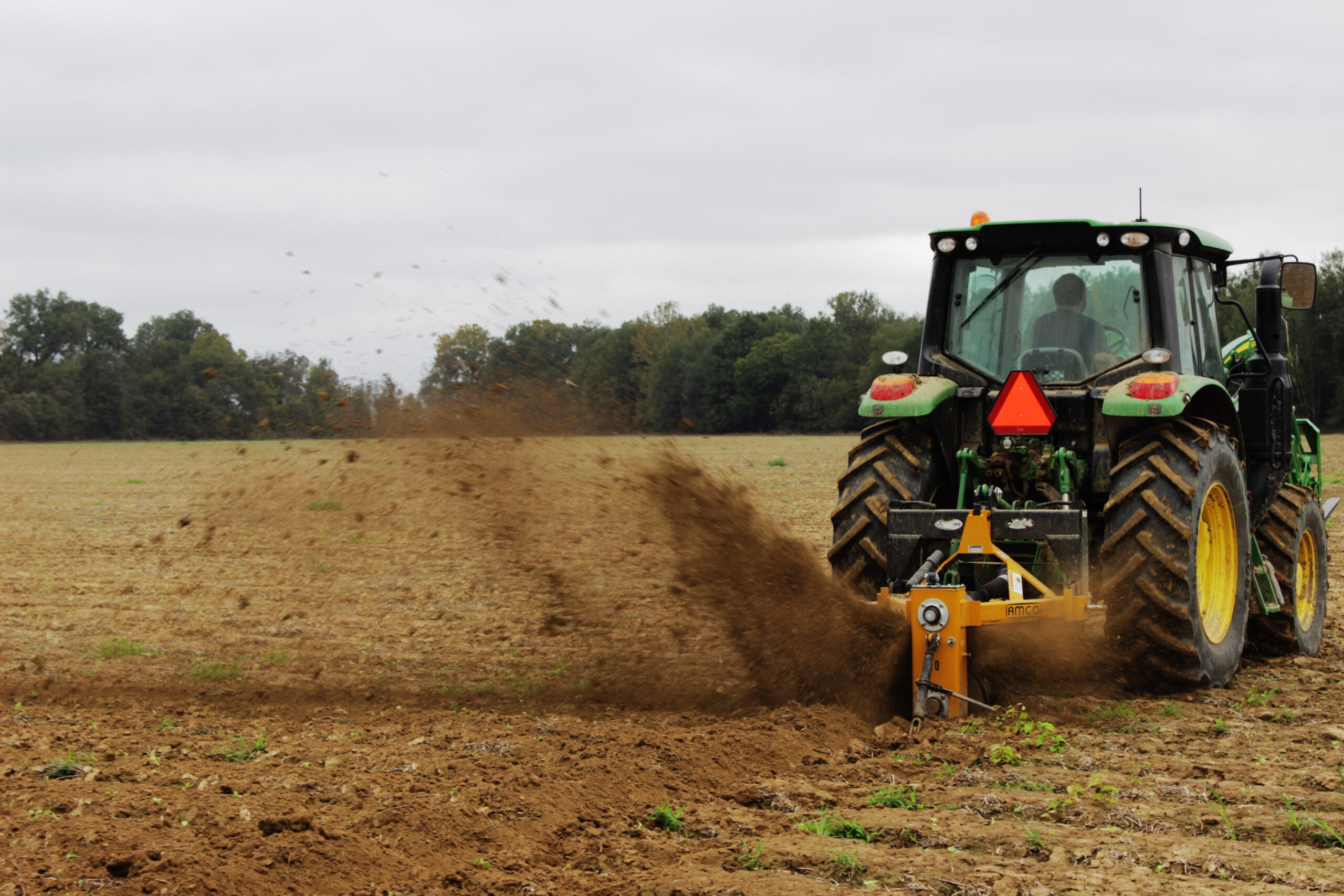

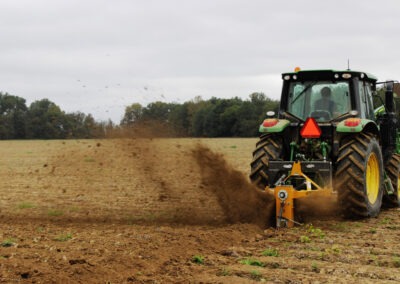

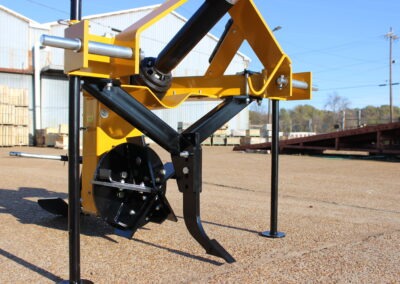

High-performing in dry conditions and still a solid choice for creating ditches in wet conditions, the AMCO Vertical Rotary Ditcher weighs 120 pounds less than the offset model and will dig a deeper ditch than the offset. The cutter head is a traditional center placement. It straddles the ditch during cleanout.

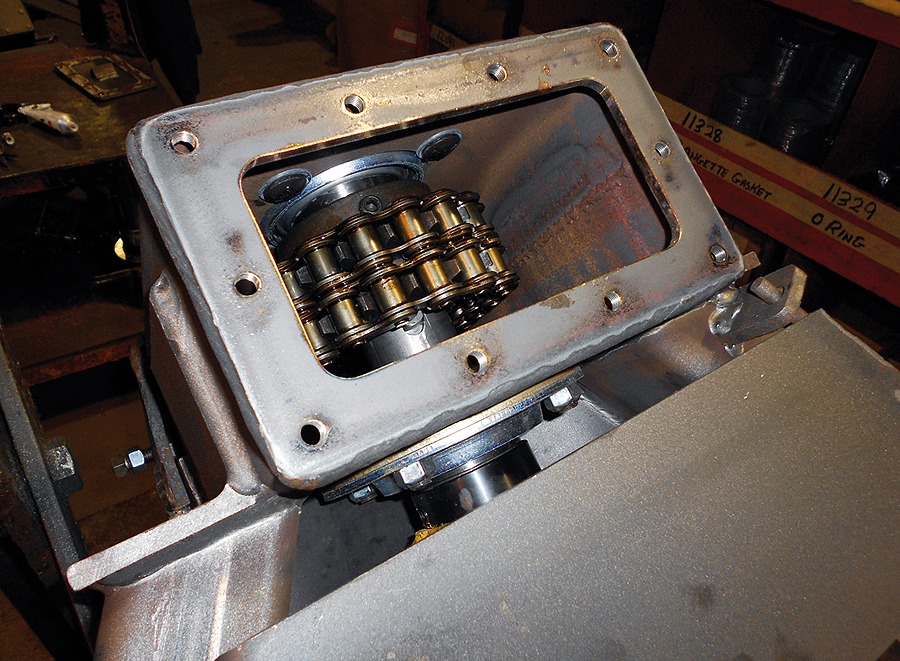

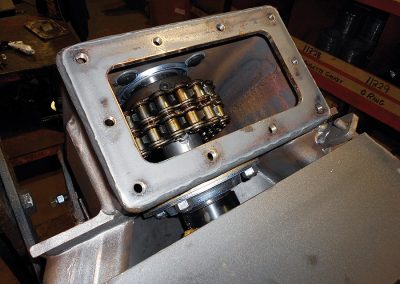

- Driving the cutter head is a dual, heavy-duty, endless double #80 roller chain with 1″ pitch that runs continuously in a sealed oil bath
- Each chain drive is equipped with an adjustable idler sprocket with case-hardened teeth
- An all-welded main frame has chain-case construction of 6″ x 10″ x ¼″ tubing
- The 3-point hitch A-frame fits category II and III with quick-hitch compatibility
- Our standard parking stands allow you to park your drainage ditcher in the upright position for easy connect and disconnect
- AMCO’s standard buster shank rips through tough dirt, allowing penetration to the desired depth and clean passage for the cutter head

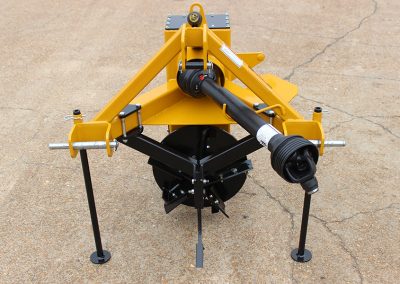

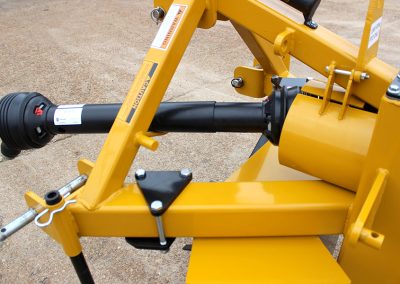

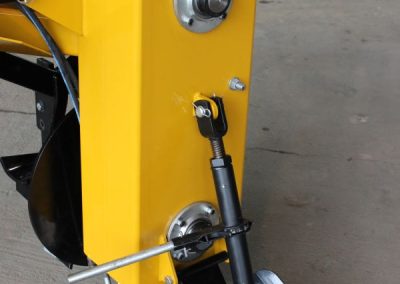

Dominator Vertical Rotary Ditcher
Dominator Vertical Rotary Ditcher Options
| Model | Description | Approx. Weight lbs. |
|---|---|---|
| AD-1000-D | Dominator Vertical Rotary Ditcher for 1,000 PTO only *Includes AD-CHA26 Cutter Head (24″ to 26″ 5-blade) and buster shank | 850 |
PTO Driveline
| Model | PTO Driveline | Approx. Weight lbs. |
|---|---|---|
| AD-DL21S | 1 3/8″, 21-spline (for 1,000 PTO) | 56 |
| AD-DL20S | 1 3/4″, 20-spline (for 1,000 PTO) | 58 |
Specifications subject to change without notice.

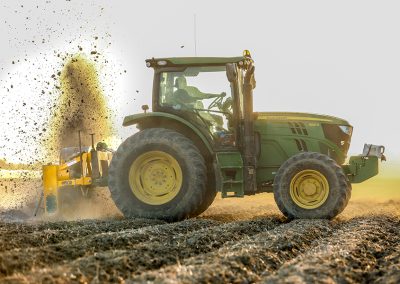

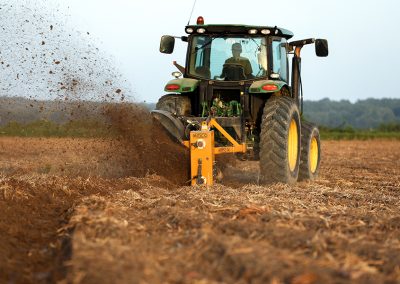

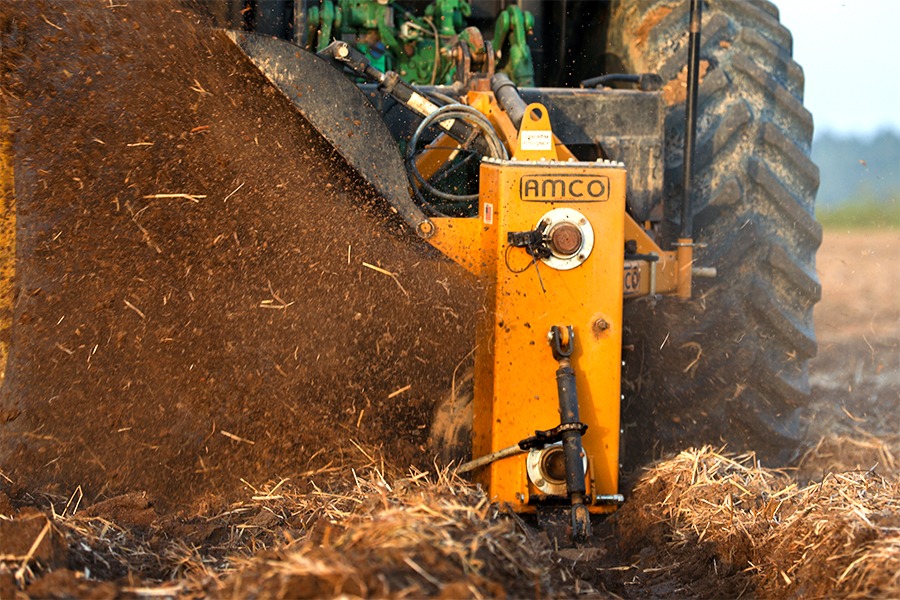

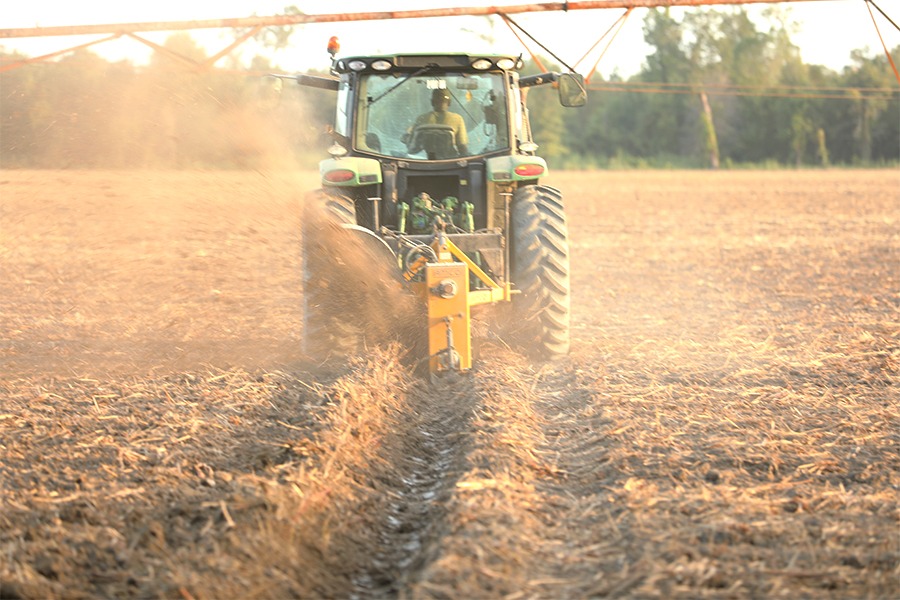

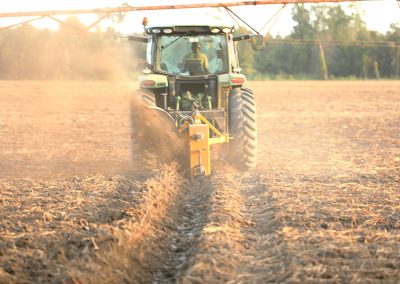

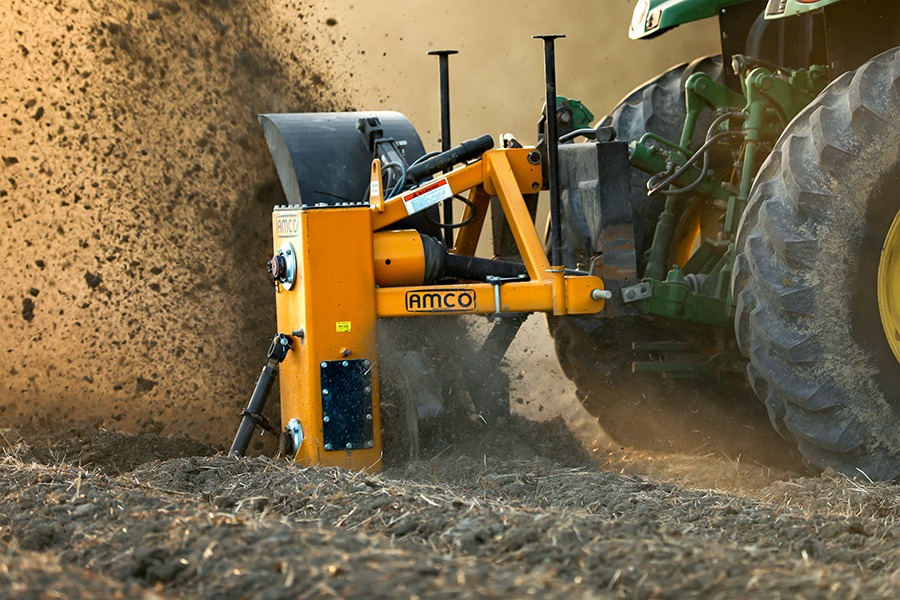

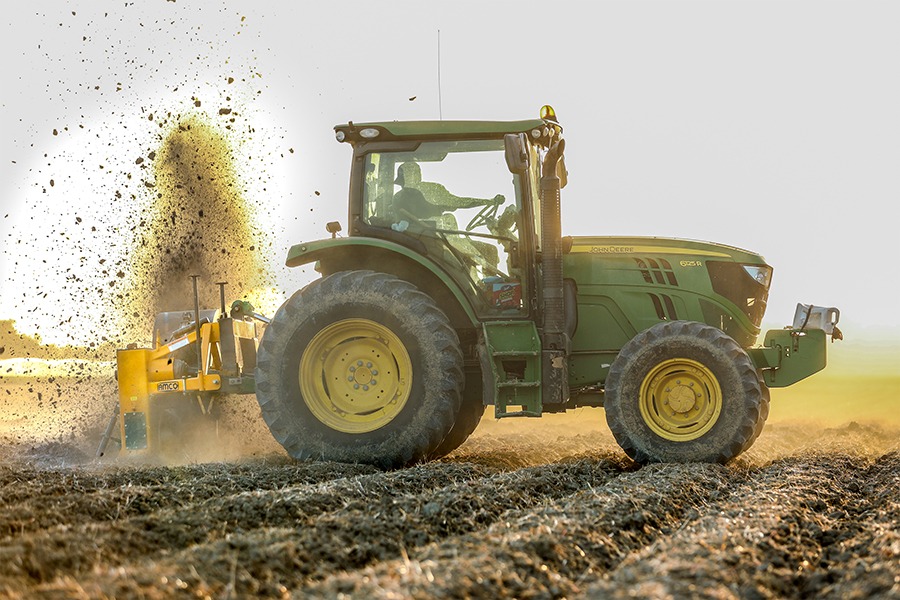

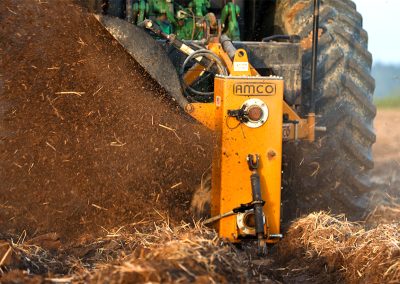

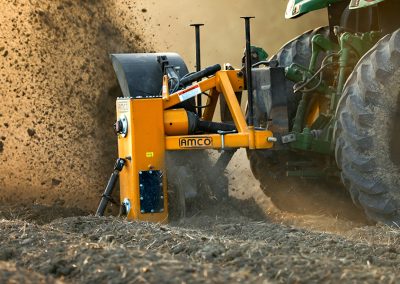

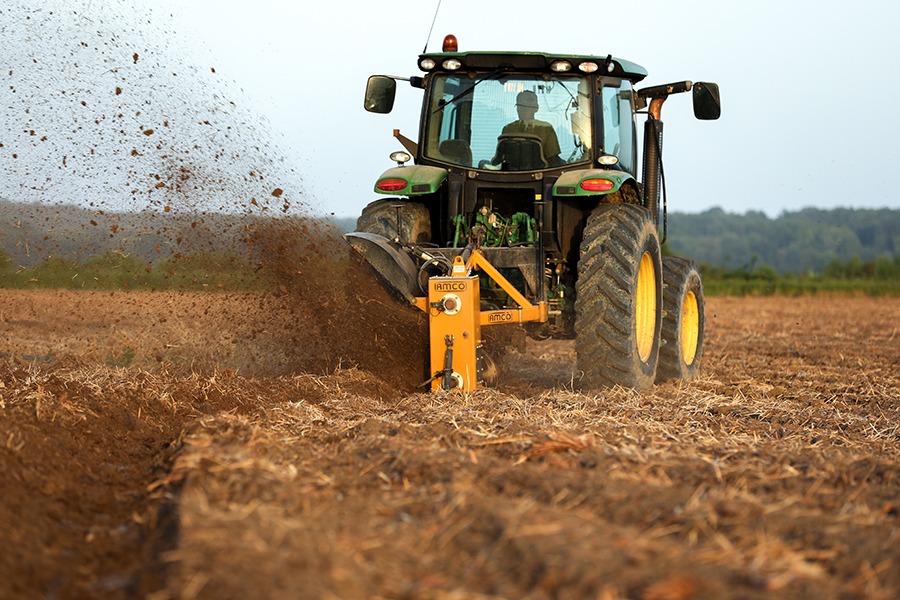

The heavy-duty AMCO Dominator Vertical Rotary Ditcher is a perfect fit for tractors in the 80–200 horsepower range. The Dominator weighs 850 lbs. and features a cutter head that’s adjustable from 24″ to 26″. Because of the size of the cutter head, the Dominator can dig a wide, shallow ditch that is easy for tractors and sprayers to cross. Like the original Vertical Rotary Ditcher, the Dominator’s cutter head has a traditional center placement, straddling the ditch during cleanout.
- Features a case-hardened dual #80 heavy-duty chain with 16-tooth and 22-tooth drive sprockets
- Body casing is 14″ x 10″ x 36″
- Cutter head is adjustable from 24″ to 26″
- All-tube steel hitch is compatible with category II and III 3-point hitches

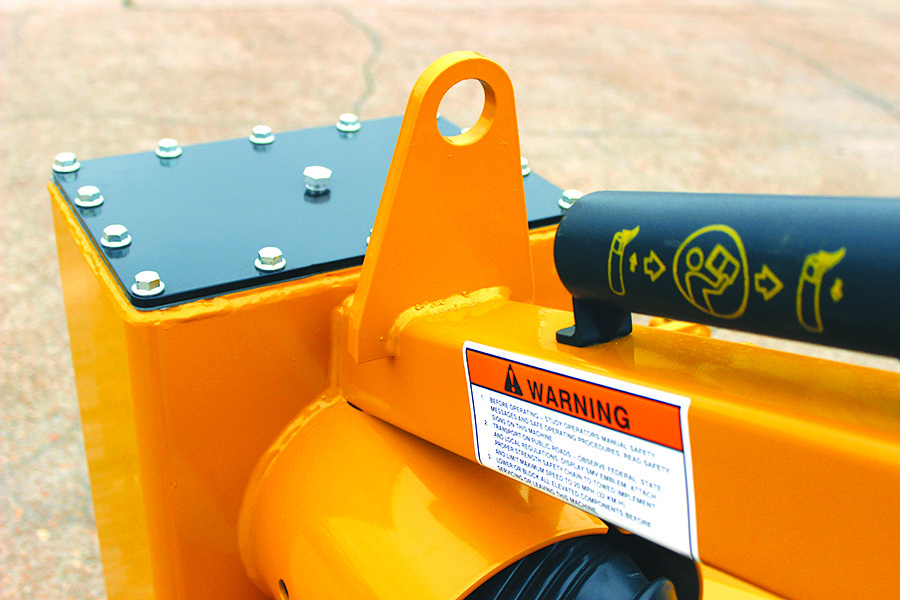

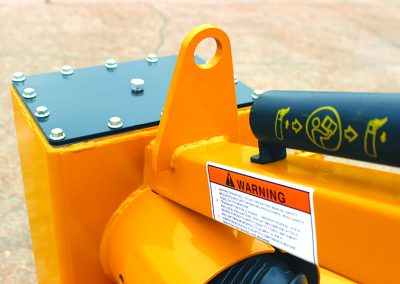

- Standard transportation loop is welded to the top of the hitch
- Ripper shank loosens tough soils to prolong bearing life (bearings come with a two-year warranty)
- Ripper shank brackets are 2″ x 3″ steel
- Features a powder-coated finish that is more durable and environmentally friendly
- Available in 1,000 PTO

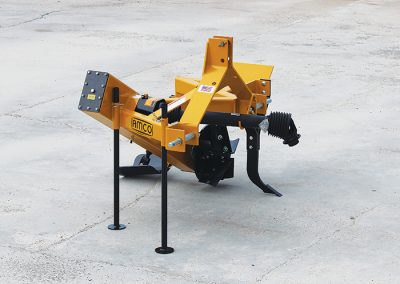

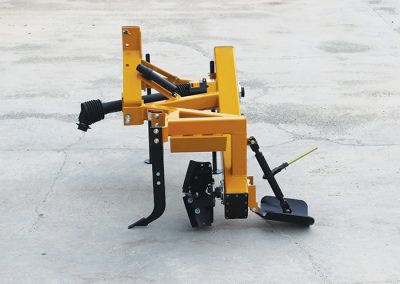

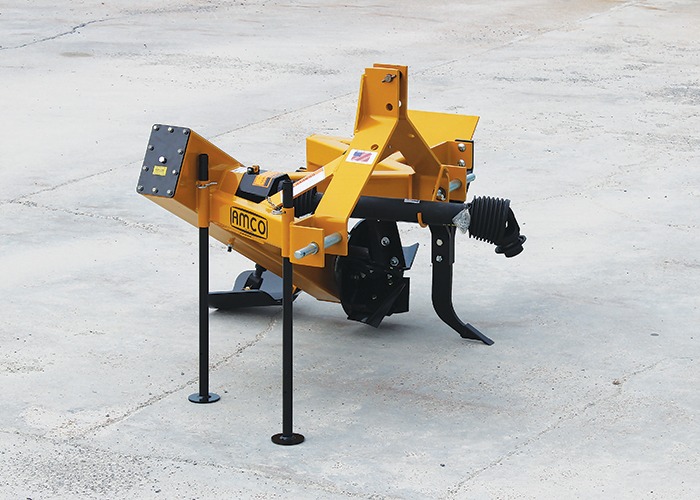

Offset Rotary Ditcher
Offset Rotary Ditcher Options
| Model | Description (Body Only) | Approx. Weight lbs. |
|---|---|---|
| AD-540-OS | Left Offset Rotary Ditcher for 540 PTO | 734 |
| AD-1000-OS | Left Offset Rotary Ditcher for 1,000 PTO | 734 |
Cutter Head Size
| Model | Blade Diameter | Approx. Weight lbs. |
|---|---|---|
| AD-CHA18 | 18″ to 20″ 5-blade | 72 |
| AD-CHA26 | 24″ to 26″ 5-blade | 109 |
PTO Driveline
| Model | PTO Driveline | Approx. Weight lbs. |
|---|---|---|
| AD-DL6S | 1 3/8″, 6-spline (for 540 PTO) | 56 |
| AD-DL21S | 1 3/8″, 21-spline (for 1,000 PTO) | 56 |
| AD-DL20S | 1 3/4″, 20-spline (for 1,000 PTO) | 58 |
Specifications subject to change without notice.

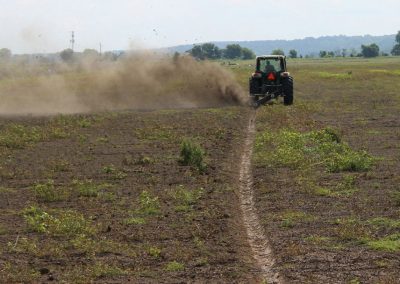

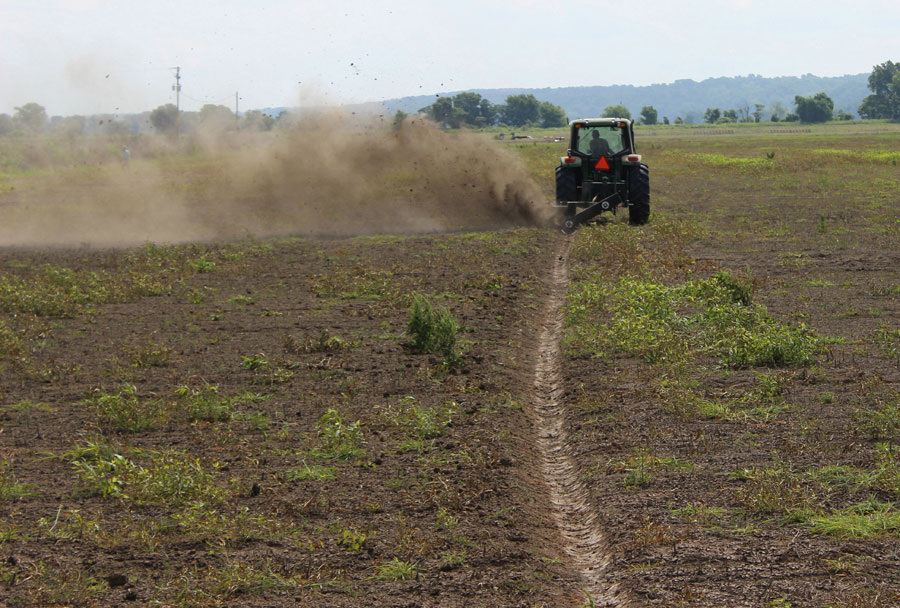

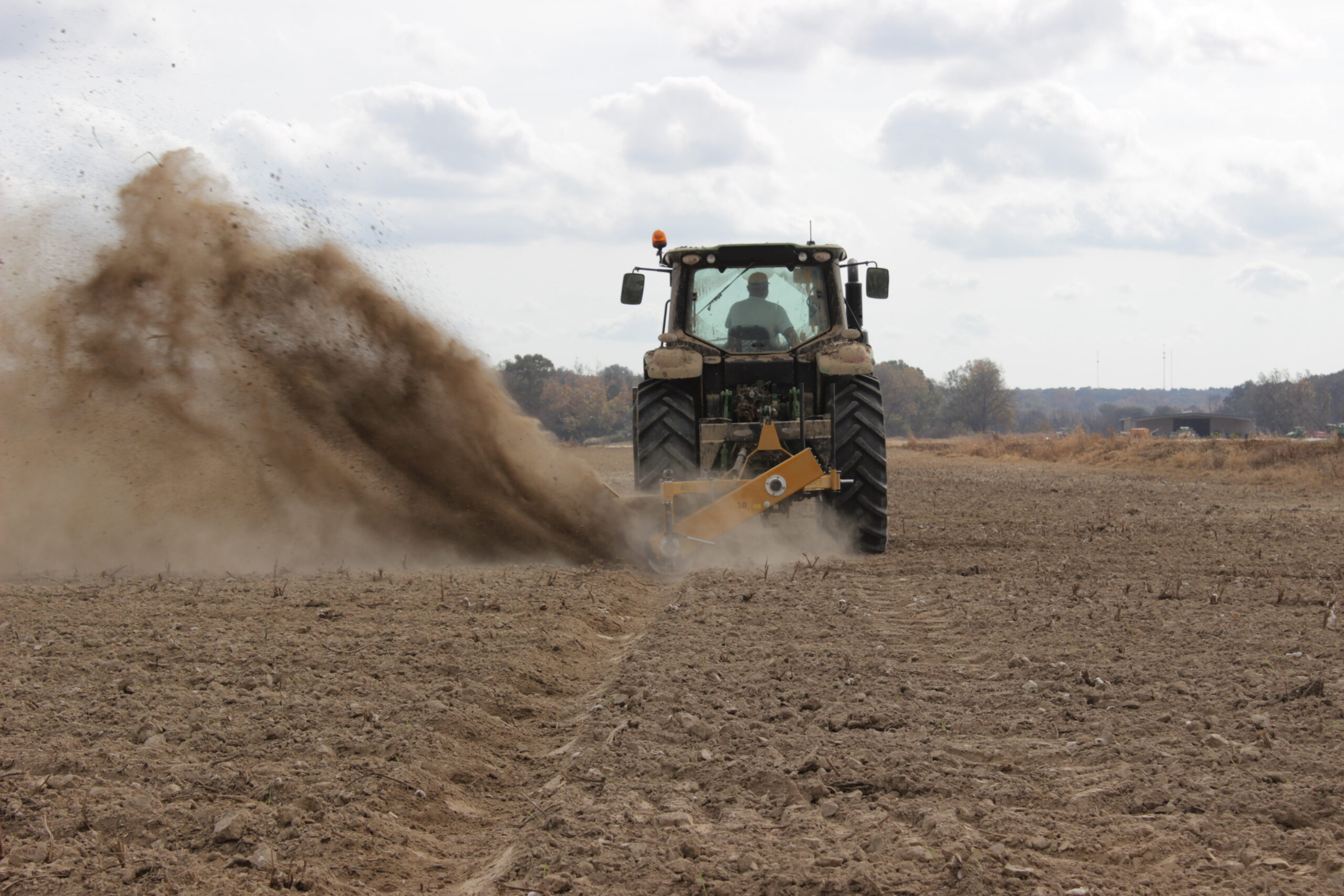

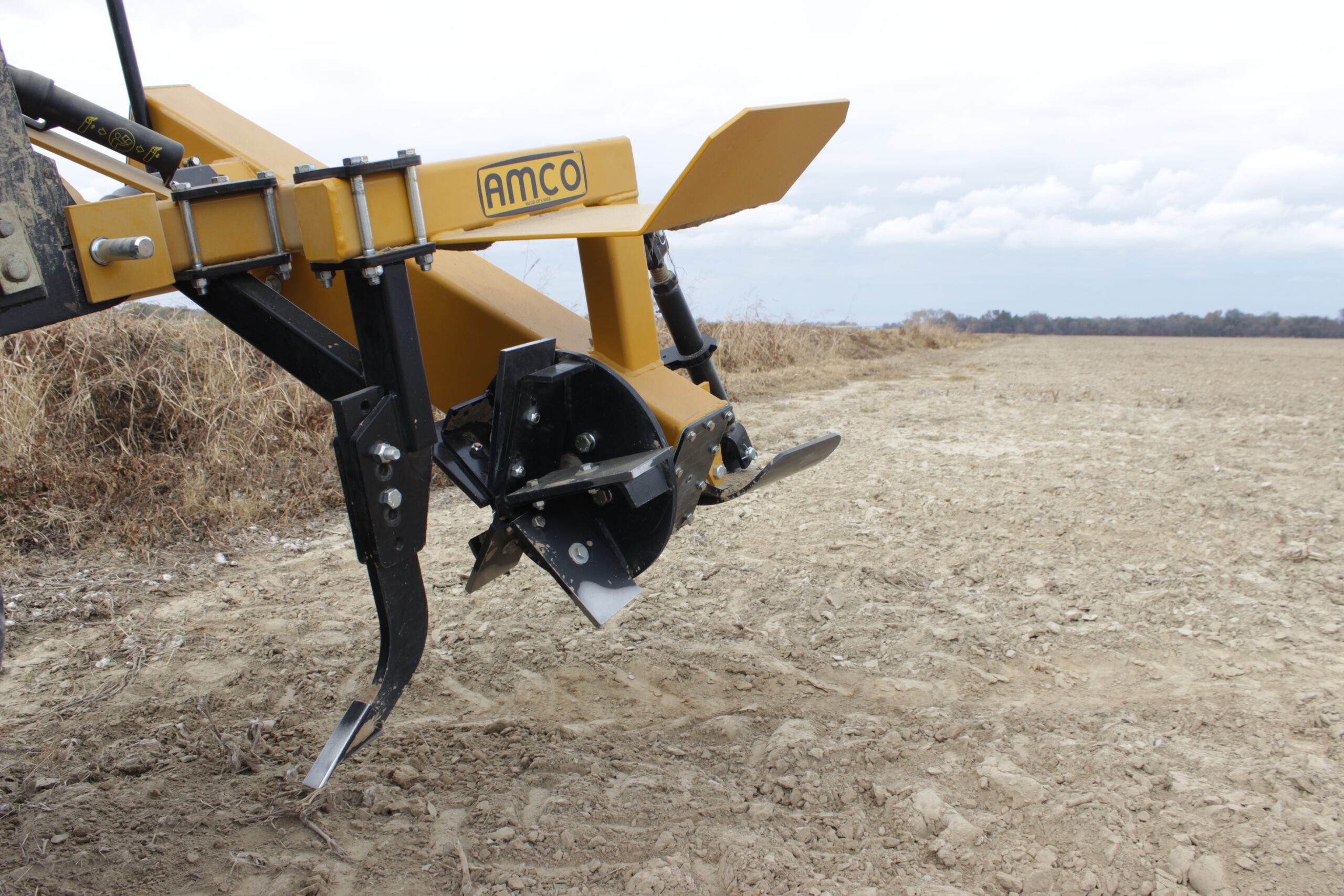

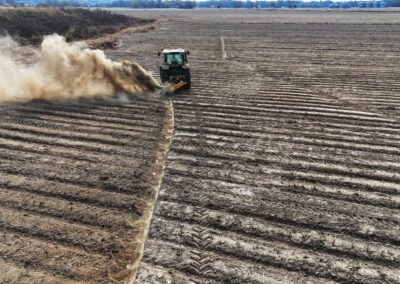

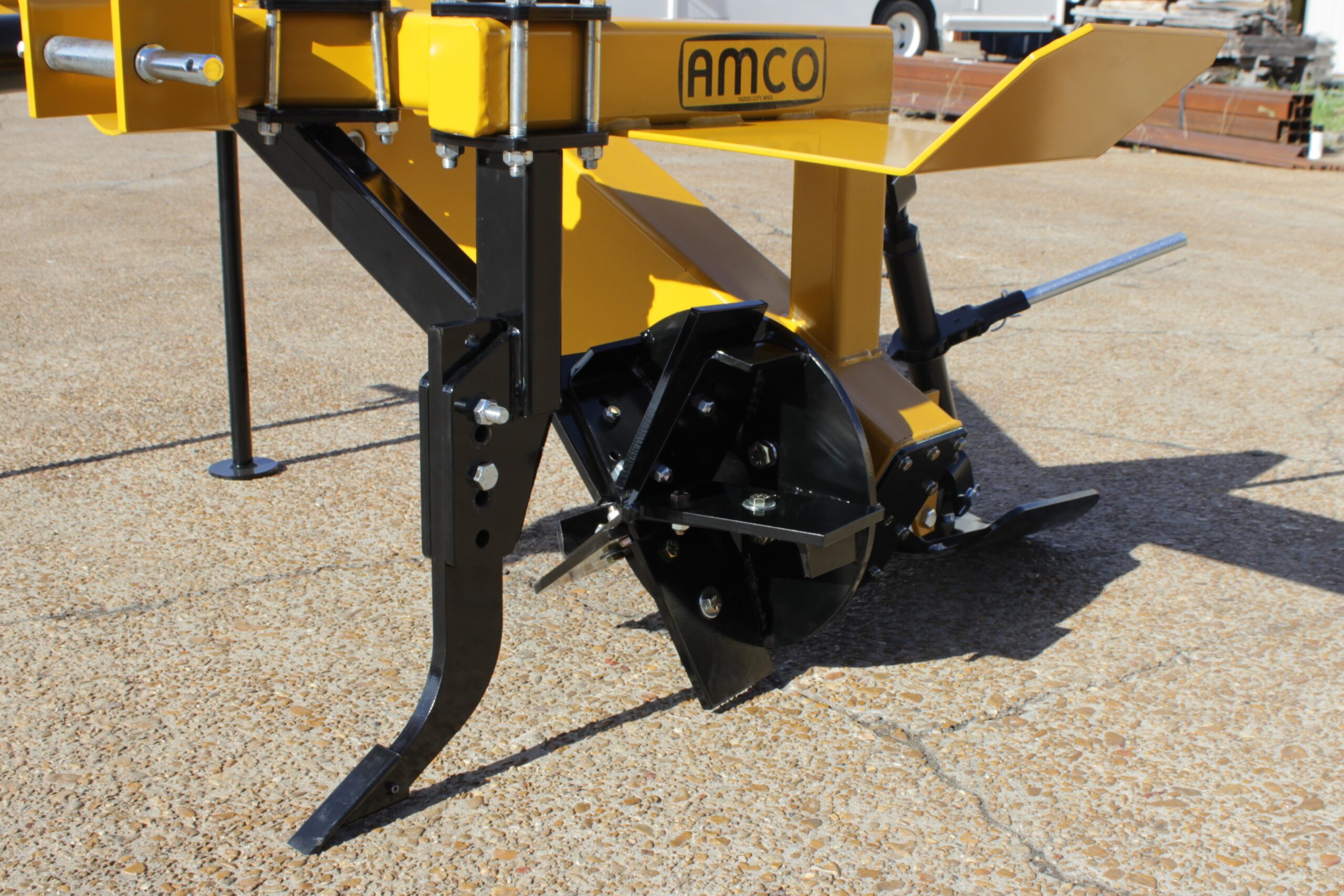

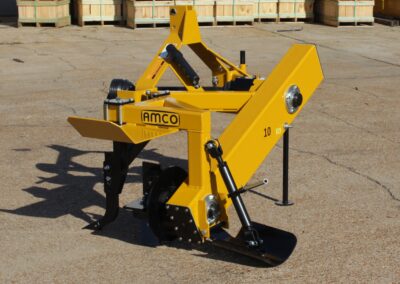

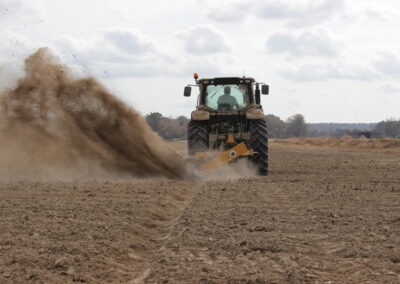

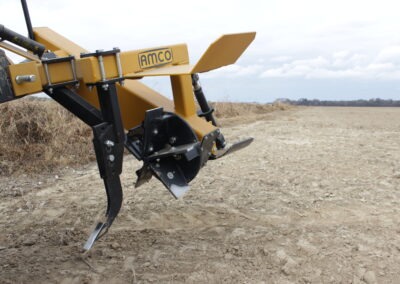

The AMCO Offset Rotary Ditcher offers outstanding performance in wet conditions and gives farmers the ability to dig drainage ditches for improved water drainage in any crop or soil type. The offset is designed so the cutter head sits behind the left tractor tire, leaving only the right tire track alongside the ditch. To clean out ditches, drop one tire into the ditch. The offset is also better for cleaning out ditches than conventional drainage ditchers; no need to straddle the ditch, just drop a tire in it and go.
- Robust frame
- Easy functionality
- Heavy-duty, endless double #80 roller chain that runs continuously in a sealed oil bath

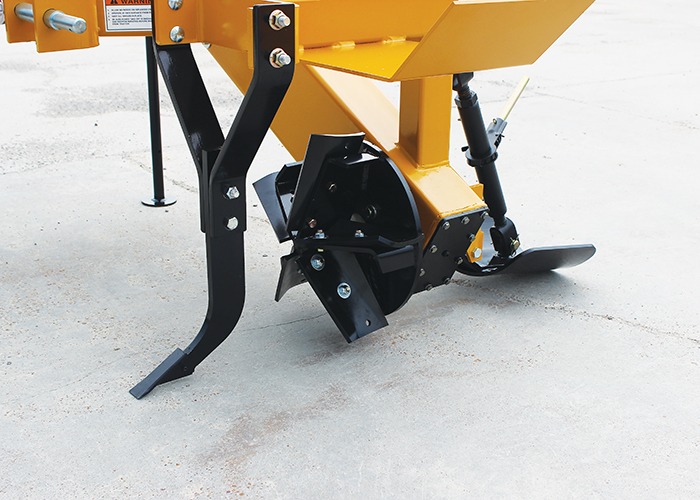

- Concave skid shoe; the skid shoe mount is located behind the ditcher gear case to keep debris and mud from building up around the cutter head
- Standard buster shank
- Available in 540 and 1,000 PTO
Watch the video below to learn more about AMCO’s versatile cutter heads
